OIL / REFINERIES
Our refractory products are a sustainable, safe and high quality solution for our clients. Our materials are used to ensure efficient energy use, optimizing and improving the performance of oil plants
We specialize in the production of special parts for the Sulfur Recovery Units using materials with a very long useful life and patented geometric arrangements that achieve up to 99% equipment efficiency.
We also supply special parts for the tunnels of Hydrogen regenerators from Methane.
Hundreds of units around the world use our refractory pieces with very favorable results.

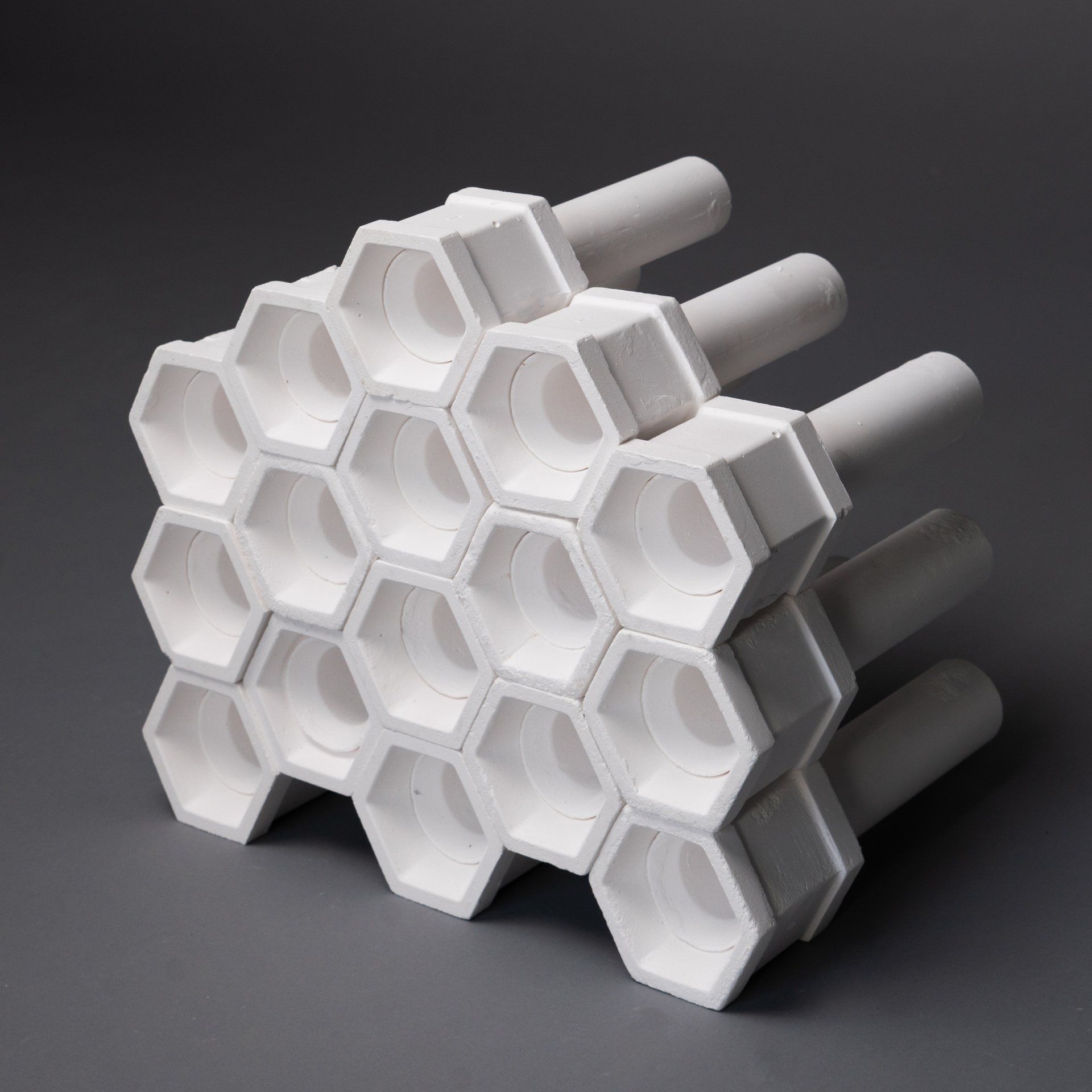

Ferrules
- Products manufactured under license from Blasch Precision Ceramics under patents # 8,646,515
- Hex Ferrules are high precision, ensuring that the heads close at operating temperature completely covering the mirror face of the tubes.
- Its installation is very simple since they do not require concrete, plastic or refractory mortar between them, eliminating the need for drying and avoiding the cracks that appear when using conventional ferrules.
- The one-piece design does not allow for gaps between the head and the ferrule sleeve.
- They are highly compatible with systems that use oxygen for flame enrichment
- The ferrules are delivered already sintered, eliminating the unforeseen and inconveniences in the installation of another type of refractory in the unit.
- The use of metal anchors for the installation of the plastic is avoided
Vector walls
- Products manufactured under license from Blasch Precision Ceramics under patents # 8,439,102
- It is formed with high stability hexagonal blocks
- The design ensures that all blocks are fully supported.
- Male-female unions with padlocks
- 50% Open area - can be modified
- Does not require mortar for installation
- Simple and fast installation
- The design provides better gas mixing, thereby helping to achieve greater efficiency in the recovery of sulfur in the unit, in compliance with the NOM-148-SEMARNAT-2006 standard.
Stablox
Tunnel System for Reforming Combustion Gases using TOP -Tunnel Optimization Performance technology, generating broad benefits in the recovery of Hydrogen.
Products manufactured under license from Blasch Precision Ceramics under patents # 10,155,210, # 10,458,707 and # 10,605,456
Process Flexibility:
Scale your equipment by improving operation efficiency without rebuilding tunnels
Pressure Drop Tunnel System:
Reduce pressure with greater width available, achieving better distributed speed and mass flow.
Tube Array Reliability:
Better temperature control will result in fewer emergency shutdowns and greater process safety.
Tube temperature:
Better temperature control helps reduce methane losses and input costs
Heat Storage:
Noble reduction in hot spots and heating / cooling effect
Variable Hole Opening:
By placing inserts, flow stability is achieved throughout the tunnel
Compositions
Our ceramic parts system operates globally and optimizes the mixing of combustion gases through an innovative static mechanism. This system offers an exceptional performance that has reached up to 99% unit efficiency.
Our compositions are specifically designed to provide a long life for our refractories.
Increased Efficiency
Substantial increase in equipment efficiency and sulfur recovery.
Hydrogen Generation
Increase in hydrogen generation in ammonia reformers.
